Toast notification (DevExpress.WinForms)

Peponi2/6/20253m

C#
SystemWindowsFormsXtraBarsToastNotificationsToastNotificationsManager

1. Introduction

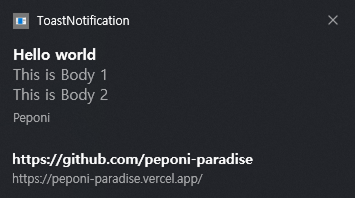

screenshot

위의 그림과 같이, 윈도우 우측 하단에 뜨는 알림창을 Toast notification이라 한다.

DevExpress에서 제공하는 Toast Notification Manager의 경우 Windows 8 이상에서만 지원한다. 이전 버전의 윈도우를 사용하는 경우 Alert Windows를 사용해야 한다.

CAUTION

Toast notification을 이용하려면 Windows Notification Platform에 COM object를 노출해야한다. 권한을 획득하지 못한 경우, notification을 호출하더라도 팝업이 나타나지 않는다.

2. Example

using DevExpress.Data;
using DevExpress.XtraEditors;
using System;
using System.Diagnostics;
using System.Windows.Forms;
using System.Xml;

namespace ToastNotification
{
    public partial class Form1 : Form
    {
        private readonly DevExpress.XtraBars.ToastNotifications.ToastNotificationsManager _notificationsManager;

        public Form1()
        {
            InitializeComponent();
            _notificationsManager = InitToastNotification();

            // Win10 스타일의 알림 기능을 이용하려면 시작 메뉴에 바로가기 등록이 되어 있어야 한다.
            if (CheckAndCreateShortcut())
            {
                // 알림 내용 설정
                _notificationsManager.Notifications[0].AttributionText = "Peponi";
                _notificationsManager.Notifications[0].Header = "Hello world";
                _notificationsManager.Notifications[0].Body = "This is Body 1";
                _notificationsManager.Notifications[0].Body2 = "This is Body 2";

                // 알림 호출
                _notificationsManager.ShowNotification(_notificationsManager.Notifications[0]);
            }
            else
            {
                Process.GetCurrentProcess().Kill();
            }
        }

        private bool CheckAndCreateShortcut()
        {
            if (ShellHelper.IsApplicationShortcutExist(Application.ProductName))
                return true;
            else
            {
                ShellHelper.TryCreateShortcut(
                            applicationId: _notificationsManager.ApplicationId,
                            name: Application.ProductName);

                // 바로가기 추가 후 다시 시작해야 정상 적용됨
                XtraMessageBox.Show("Please restart application", "Work done");

                return false;
            }
        }

        private DevExpress.XtraBars.ToastNotifications.ToastNotificationsManager InitToastNotification()
        {
            var manager = new DevExpress.XtraBars.ToastNotifications.ToastNotificationsManager(components)
            {
                ApplicationId = "12b48acf-0e0a-49ef-8041-dceb872ed14d",
                ApplicationName = "ToastNotificationTest"
            };

            // 알림 추가
            manager.Notifications.AddRange(new DevExpress.XtraBars.ToastNotifications.IToastNotificationProperties[] {
            new DevExpress.XtraBars.ToastNotifications.ToastNotification("77b2bb7e-94e3-40b5-ac7a-eec2af0da5da",
            null,
            null,
            (System.Drawing.Image)ToastNotification.Properties.Resources.ResourceManager.GetObject("NotificationsManager.Notifications"),
            null,
            null,
            null,
            "Header",
            "Body",
            "Body2",
            "Peponi",
            DevExpress.XtraBars.ToastNotifications.ToastNotificationSound.NoSound,
            DevExpress.XtraBars.ToastNotifications.ToastNotificationDuration.Long,
            null,
            DevExpress.XtraBars.ToastNotifications.AppLogoCrop.Default,
            DevExpress.XtraBars.ToastNotifications.ToastNotificationTemplate.Generic)
            });

            manager.UpdateToastContent += NotificationsManager_UpdateToastContent;

            return manager;
        }

        private void NotificationsManager_UpdateToastContent(object sender, DevExpress.XtraBars.ToastNotifications.UpdateToastContentEventArgs e)
        {
            // Footer 추가하는 방법
            XmlDocument doc = e.ToastContent;
            XmlNode bindingNode = doc.GetElementsByTagName("binding").Item(0);
            if (bindingNode != null)
            {
                XmlElement group = doc.CreateElement("group");
                bindingNode.AppendChild(group);

                XmlElement subGroup = doc.CreateElement("subgroup");
                group.AppendChild(subGroup);

                XmlElement text = doc.CreateElement("text");
                subGroup.AppendChild(text);
                text.SetAttribute("hint-style", "base");
                text.InnerText = "https://github.com/peponi-paradise";

                text = doc.CreateElement("text");
                subGroup.AppendChild(text);
                text.SetAttribute("hint-style", "captionSubtle");
                text.InnerText = "https://peponi-paradise.vercel.app/";
            }
        }
    }
}

3. 참조 자료
