1. Introduction
이 문서에서는 OpenCvSharp4, webcam을 이용해 영상을 캡쳐하는 방법을 알아본다. Video 재생 시와 마찬가지로 프레임 단위로 화면을 갱신한다. 사용 중인 카메라에 따라 지원하는 프로퍼티가 달라 카메라 설정 시 확인이 필요하다.
2. Example

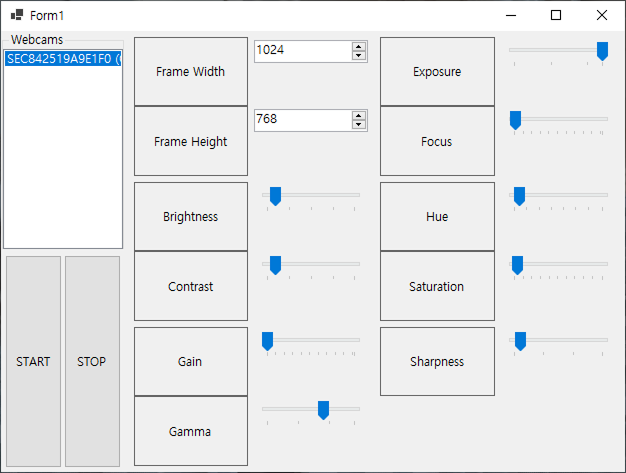

간단한 윈폼 프로젝트를 하나 만들어 테스트를 수행하였다. 디자인은 다음 이미지와 같다.
using OpenCvSharp;
using System.Management;
namespace UsingWebcam;
public partial class Form1 : Form
{
private VideoCapture _videoCapture;
private readonly SynchronizationContext _syncContext;
private volatile bool _isStop = false;
public Form1()
{
InitializeComponent();
_syncContext = SynchronizationContext.Current!;
_videoCapture = new VideoCapture();
WebcamList.Items.AddRange(GetImageDevices());
if (WebcamList.Items.Count > 0)
WebcamList.SelectedIndex = 0;
StartButton.Click += StartButton_Click;
StopButton.Click += StopButton_Click;
}
private void StartButton_Click(object? sender, EventArgs e)
{
// 카메라 열기
_videoCapture.Open(WebcamList.SelectedIndex);
// 프레임 크기 조절 시 카메라 다시 연결. 최초 연결할 때만 설정
_videoCapture.Set(VideoCaptureProperties.FrameWidth, (int)FrameWidth.Value);
_videoCapture.Set(VideoCaptureProperties.FrameHeight, (int)FrameHeight.Value);
var worker = new Thread(Worker)
{
IsBackground = true
};
worker.Start();
}
private void StopButton_Click(object? sender, EventArgs e) => _isStop = true;
private void Worker()
{
_isStop = false;
// OpenCvSharp 제공 window
var videoWindow = new Window("Video");
while (!_isStop)
{
SetCameraParams();
// Frame 단위 재생
using var frame = new Mat();
_videoCapture.Read(frame);
videoWindow.ShowImage(frame);
// 카메라에 설정된 Fps 값만큼 wait
Cv2.WaitKey((int)Math.Round(1000 / _videoCapture.Fps));
}
videoWindow.Close();
}
/// <summary>
/// PC에 있는 이미지 장치를 얻어옴 <br/>
/// 스캐너 등 다른 장치 또한 나타날 수 있음
/// </summary>
/// <returns>Device names</returns>
private string[] GetImageDevices()
{
var deviceNames = new List<string>();
// System.Management Nuget 설치 필요
var searcher = new ManagementObjectSearcher("SELECT * FROM Win32_PnPEntity WHERE (PNPClass = 'Image' OR PNPClass = 'Camera')");
foreach (var device in searcher.Get())
deviceNames.Add(device["Caption"].ToString()!);
return [.. deviceNames];
}
// 카메라에 따라 적용 가능한 설정이 다를 수 있음
private void SetCameraParams()
{
double exposure = 0;
double focus = 0;
double brightness = 0;
double contrast = 0;
double hue = 0;
double saturation = 0;
double gain = 0;
double gamma = 0;
double sharpness = 0;
// UI 값을 읽어옴
_syncContext.Send(delegate
{
exposure = Exposure.Value;
focus = Focus.Value;
brightness = Brightness.Value;
contrast = Contrast.Value;
hue = Hue.Value;
saturation = Saturation.Value;
gain = Gain.Value;
gamma = Gamma.Value;
sharpness = Sharpness.Value;
}, null);
if (_videoCapture.Exposure != exposure)
_videoCapture.Exposure = exposure;
if (_videoCapture.Focus != focus)
_videoCapture.Focus = focus;
if (_videoCapture.Brightness != brightness)
_videoCapture.Brightness = brightness;
if (_videoCapture.Contrast != contrast)
_videoCapture.Contrast = contrast;
if (_videoCapture.Hue != hue)
_videoCapture.Hue = hue;
if (_videoCapture.Saturation != saturation)
_videoCapture.Saturation = saturation;
if (_videoCapture.Gain != gain)
_videoCapture.Gain = gain;
if (_videoCapture.Gamma != gamma)
_videoCapture.Gamma = gamma;
if (_videoCapture.Sharpness != sharpness)
_videoCapture.Sharpness = sharpness;
}
}Form1.Designer.cs (접기 / 펼치기)
namespace UsingWebcam;
partial class Form1
{
/// <summary>
/// 필수 디자이너 변수입니다.
/// </summary>
private System.ComponentModel.IContainer components = null;
/// <summary>
/// 사용 중인 모든 리소스를 정리합니다.
/// </summary>
/// <param name="disposing">관리되는 리소스를 삭제해야 하면 true이고, 그렇지 않으면 false입니다.</param>
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}
#region Windows Form 디자이너에서 생성한 코드
/// <summary>
/// 디자이너 지원에 필요한 메서드입니다.
/// 이 메서드의 내용을 코드 편집기로 수정하지 마세요.
/// </summary>
private void InitializeComponent()
{
ControlPanel = new TableLayoutPanel();
CamListBox = new GroupBox();
WebcamList = new ListBox();
WebcamStartStopPanel = new TableLayoutPanel();
StopButton = new Button();
StartButton = new Button();
PropertyPanel = new TableLayoutPanel();
SharpnessPanel = new TableLayoutPanel();
SharpnessLabel = new Label();
Sharpness = new TrackBar();
GainGammaPanel = new TableLayoutPanel();
Gamma = new TrackBar();
GammaLabel = new Label();
GainLabel = new Label();
Gain = new TrackBar();
HueSaturationPanel = new TableLayoutPanel();
Saturation = new TrackBar();
SaturationLabel = new Label();
HueLabel = new Label();
Hue = new TrackBar();
ExposureFocusPanel = new TableLayoutPanel();
Focus = new TrackBar();
FocusLabel = new Label();
ExposureLabel = new Label();
Exposure = new TrackBar();
BrightnessContrastPanel = new TableLayoutPanel();
Contrast = new TrackBar();
ContrastLabel = new Label();
BrightnessLabel = new Label();
Brightness = new TrackBar();
FrameSizePanel = new TableLayoutPanel();
FrameHeightLabel = new Label();
FrameHeight = new NumericUpDown();
FrameWidthLabel = new Label();
FrameWidth = new NumericUpDown();
ControlPanel.SuspendLayout();
CamListBox.SuspendLayout();
WebcamStartStopPanel.SuspendLayout();
PropertyPanel.SuspendLayout();
SharpnessPanel.SuspendLayout();
((System.ComponentModel.ISupportInitialize)Sharpness).BeginInit();
GainGammaPanel.SuspendLayout();
((System.ComponentModel.ISupportInitialize)Gamma).BeginInit();
((System.ComponentModel.ISupportInitialize)Gain).BeginInit();
HueSaturationPanel.SuspendLayout();
((System.ComponentModel.ISupportInitialize)Saturation).BeginInit();
((System.ComponentModel.ISupportInitialize)Hue).BeginInit();
ExposureFocusPanel.SuspendLayout();
((System.ComponentModel.ISupportInitialize)Focus).BeginInit();
((System.ComponentModel.ISupportInitialize)Exposure).BeginInit();
BrightnessContrastPanel.SuspendLayout();
((System.ComponentModel.ISupportInitialize)Contrast).BeginInit();
((System.ComponentModel.ISupportInitialize)Brightness).BeginInit();
FrameSizePanel.SuspendLayout();
((System.ComponentModel.ISupportInitialize)FrameHeight).BeginInit();
((System.ComponentModel.ISupportInitialize)FrameWidth).BeginInit();
SuspendLayout();
//
// ControlPanel
//
ControlPanel.ColumnCount = 2;
ControlPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 20F));
ControlPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 80F));
ControlPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Absolute, 20F));
ControlPanel.Controls.Add(CamListBox, 0, 0);
ControlPanel.Controls.Add(WebcamStartStopPanel, 0, 1);
ControlPanel.Controls.Add(PropertyPanel, 1, 0);
ControlPanel.Dock = DockStyle.Fill;
ControlPanel.Location = new Point(0, 0);
ControlPanel.Margin = new Padding(0);
ControlPanel.Name = "ControlPanel";
ControlPanel.RowCount = 2;
ControlPanel.RowStyles.Add(new RowStyle(SizeType.Percent, 50F));
ControlPanel.RowStyles.Add(new RowStyle(SizeType.Percent, 50F));
ControlPanel.Size = new Size(624, 441);
ControlPanel.TabIndex = 1;
//
// CamListBox
//
CamListBox.Controls.Add(WebcamList);
CamListBox.Dock = DockStyle.Fill;
CamListBox.Location = new Point(1, 1);
CamListBox.Margin = new Padding(1);
CamListBox.Name = "CamListBox";
CamListBox.Padding = new Padding(1);
CamListBox.Size = new Size(122, 218);
CamListBox.TabIndex = 4;
CamListBox.TabStop = false;
CamListBox.Text = "Webcams";
//
// WebcamList
//
WebcamList.Dock = DockStyle.Fill;
WebcamList.FormattingEnabled = true;
WebcamList.IntegralHeight = false;
WebcamList.ItemHeight = 15;
WebcamList.Location = new Point(1, 17);
WebcamList.Name = "WebcamList";
WebcamList.Size = new Size(120, 200);
WebcamList.TabIndex = 0;
//
// WebcamStartStopPanel
//
WebcamStartStopPanel.ColumnCount = 2;
WebcamStartStopPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 50F));
WebcamStartStopPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 50F));
WebcamStartStopPanel.Controls.Add(StopButton, 1, 0);
WebcamStartStopPanel.Controls.Add(StartButton, 0, 0);
WebcamStartStopPanel.Dock = DockStyle.Fill;
WebcamStartStopPanel.Location = new Point(3, 223);
WebcamStartStopPanel.Name = "WebcamStartStopPanel";
WebcamStartStopPanel.RowCount = 1;
WebcamStartStopPanel.RowStyles.Add(new RowStyle(SizeType.Percent, 50F));
WebcamStartStopPanel.Size = new Size(118, 215);
WebcamStartStopPanel.TabIndex = 5;
//
// StopButton
//
StopButton.Dock = DockStyle.Fill;
StopButton.Location = new Point(60, 1);
StopButton.Margin = new Padding(1);
StopButton.Name = "StopButton";
StopButton.Size = new Size(57, 213);
StopButton.TabIndex = 3;
StopButton.Text = "STOP";
StopButton.UseVisualStyleBackColor = true;
//
// StartButton
//
StartButton.Dock = DockStyle.Fill;
StartButton.Location = new Point(1, 1);
StartButton.Margin = new Padding(1);
StartButton.Name = "StartButton";
StartButton.Size = new Size(57, 213);
StartButton.TabIndex = 2;
StartButton.Text = "START";
StartButton.UseVisualStyleBackColor = true;
//
// PropertyPanel
//
PropertyPanel.ColumnCount = 4;
PropertyPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 25F));
PropertyPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 25F));
PropertyPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 25F));
PropertyPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 25F));
PropertyPanel.Controls.Add(SharpnessPanel, 2, 2);
PropertyPanel.Controls.Add(GainGammaPanel, 0, 2);
PropertyPanel.Controls.Add(HueSaturationPanel, 2, 1);
PropertyPanel.Controls.Add(ExposureFocusPanel, 2, 0);
PropertyPanel.Controls.Add(BrightnessContrastPanel, 0, 1);
PropertyPanel.Controls.Add(FrameSizePanel, 0, 0);
PropertyPanel.Dock = DockStyle.Fill;
PropertyPanel.Location = new Point(127, 3);
PropertyPanel.Name = "PropertyPanel";
PropertyPanel.RowCount = 3;
ControlPanel.SetRowSpan(PropertyPanel, 2);
PropertyPanel.RowStyles.Add(new RowStyle(SizeType.Percent, 33.33333F));
PropertyPanel.RowStyles.Add(new RowStyle(SizeType.Percent, 33.33333F));
PropertyPanel.RowStyles.Add(new RowStyle(SizeType.Percent, 33.33333F));
PropertyPanel.Size = new Size(494, 435);
PropertyPanel.TabIndex = 6;
//
// SharpnessPanel
//
SharpnessPanel.ColumnCount = 2;
PropertyPanel.SetColumnSpan(SharpnessPanel, 2);
SharpnessPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 50F));
SharpnessPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 50F));
SharpnessPanel.Controls.Add(SharpnessLabel, 0, 0);
SharpnessPanel.Controls.Add(Sharpness, 1, 0);
SharpnessPanel.Dock = DockStyle.Fill;
SharpnessPanel.Location = new Point(249, 293);
SharpnessPanel.Name = "SharpnessPanel";
SharpnessPanel.RowCount = 2;
SharpnessPanel.RowStyles.Add(new RowStyle(SizeType.Percent, 50F));
SharpnessPanel.RowStyles.Add(new RowStyle(SizeType.Percent, 50F));
SharpnessPanel.Size = new Size(242, 139);
SharpnessPanel.TabIndex = 5;
//
// SharpnessLabel
//
SharpnessLabel.AutoSize = true;
SharpnessLabel.BorderStyle = BorderStyle.FixedSingle;
SharpnessLabel.Dock = DockStyle.Fill;
SharpnessLabel.Location = new Point(3, 0);
SharpnessLabel.Name = "SharpnessLabel";
SharpnessLabel.Size = new Size(115, 69);
SharpnessLabel.TabIndex = 0;
SharpnessLabel.Text = "Sharpness";
SharpnessLabel.TextAlign = ContentAlignment.MiddleCenter;
//
// Sharpness
//
Sharpness.Dock = DockStyle.Fill;
Sharpness.Location = new Point(124, 3);
Sharpness.Maximum = 15;
Sharpness.Name = "Sharpness";
Sharpness.Size = new Size(115, 63);
Sharpness.TabIndex = 3;
Sharpness.TickFrequency = 5;
Sharpness.Value = 1;
//
// GainGammaPanel
//
GainGammaPanel.ColumnCount = 2;
PropertyPanel.SetColumnSpan(GainGammaPanel, 2);
GainGammaPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 50F));
GainGammaPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 50F));
GainGammaPanel.Controls.Add(Gamma, 1, 1);
GainGammaPanel.Controls.Add(GammaLabel, 0, 1);
GainGammaPanel.Controls.Add(GainLabel, 0, 0);
GainGammaPanel.Controls.Add(Gain, 1, 0);
GainGammaPanel.Dock = DockStyle.Fill;
GainGammaPanel.Location = new Point(3, 293);
GainGammaPanel.Name = "GainGammaPanel";
GainGammaPanel.RowCount = 2;
GainGammaPanel.RowStyles.Add(new RowStyle(SizeType.Percent, 50F));
GainGammaPanel.RowStyles.Add(new RowStyle(SizeType.Percent, 50F));
GainGammaPanel.Size = new Size(240, 139);
GainGammaPanel.TabIndex = 4;
//
// Gamma
//
Gamma.Dock = DockStyle.Fill;
Gamma.Location = new Point(123, 72);
Gamma.Maximum = 15;
Gamma.Minimum = 1;
Gamma.Name = "Gamma";
Gamma.Size = new Size(114, 64);
Gamma.TabIndex = 4;
Gamma.TickFrequency = 5;
Gamma.Value = 10;
//
// GammaLabel
//
GammaLabel.AutoSize = true;
GammaLabel.BorderStyle = BorderStyle.FixedSingle;
GammaLabel.Dock = DockStyle.Fill;
GammaLabel.Location = new Point(3, 69);
GammaLabel.Name = "GammaLabel";
GammaLabel.Size = new Size(114, 70);
GammaLabel.TabIndex = 2;
GammaLabel.Text = "Gamma";
GammaLabel.TextAlign = ContentAlignment.MiddleCenter;
//
// GainLabel
//
GainLabel.AutoSize = true;
GainLabel.BorderStyle = BorderStyle.FixedSingle;
GainLabel.Dock = DockStyle.Fill;
GainLabel.Location = new Point(3, 0);
GainLabel.Name = "GainLabel";
GainLabel.Size = new Size(114, 69);
GainLabel.TabIndex = 0;
GainLabel.Text = "Gain";
GainLabel.TextAlign = ContentAlignment.MiddleCenter;
//
// Gain
//
Gain.Dock = DockStyle.Fill;
Gain.Location = new Point(123, 3);
Gain.Maximum = 255;
Gain.Minimum = -1;
Gain.Name = "Gain";
Gain.Size = new Size(114, 63);
Gain.TabIndex = 3;
Gain.TickFrequency = 5;
//
// HueSaturationPanel
//
HueSaturationPanel.ColumnCount = 2;
PropertyPanel.SetColumnSpan(HueSaturationPanel, 2);
HueSaturationPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 50F));
HueSaturationPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 50F));
HueSaturationPanel.Controls.Add(Saturation, 1, 1);
HueSaturationPanel.Controls.Add(SaturationLabel, 0, 1);
HueSaturationPanel.Controls.Add(HueLabel, 0, 0);
HueSaturationPanel.Controls.Add(Hue, 1, 0);
HueSaturationPanel.Dock = DockStyle.Fill;
HueSaturationPanel.Location = new Point(249, 148);
HueSaturationPanel.Name = "HueSaturationPanel";
HueSaturationPanel.RowCount = 2;
HueSaturationPanel.RowStyles.Add(new RowStyle(SizeType.Percent, 50F));
HueSaturationPanel.RowStyles.Add(new RowStyle(SizeType.Percent, 50F));
HueSaturationPanel.Size = new Size(242, 139);
HueSaturationPanel.TabIndex = 3;
//
// Saturation
//
Saturation.Dock = DockStyle.Fill;
Saturation.Location = new Point(124, 72);
Saturation.Maximum = 255;
Saturation.Name = "Saturation";
Saturation.Size = new Size(115, 64);
Saturation.TabIndex = 4;
Saturation.TickFrequency = 5;
Saturation.Value = 10;
//
// SaturationLabel
//
SaturationLabel.AutoSize = true;
SaturationLabel.BorderStyle = BorderStyle.FixedSingle;
SaturationLabel.Dock = DockStyle.Fill;
SaturationLabel.Location = new Point(3, 69);
SaturationLabel.Name = "SaturationLabel";
SaturationLabel.Size = new Size(115, 70);
SaturationLabel.TabIndex = 2;
SaturationLabel.Text = "Saturation";
SaturationLabel.TextAlign = ContentAlignment.MiddleCenter;
//
// HueLabel
//
HueLabel.AutoSize = true;
HueLabel.BorderStyle = BorderStyle.FixedSingle;
HueLabel.Dock = DockStyle.Fill;
HueLabel.Location = new Point(3, 0);
HueLabel.Name = "HueLabel";
HueLabel.Size = new Size(115, 69);
HueLabel.TabIndex = 0;
HueLabel.Text = "Hue";
HueLabel.TextAlign = ContentAlignment.MiddleCenter;
//
// Hue
//
Hue.Dock = DockStyle.Fill;
Hue.Location = new Point(124, 3);
Hue.Maximum = 179;
Hue.Name = "Hue";
Hue.Size = new Size(115, 63);
Hue.TabIndex = 3;
Hue.TickFrequency = 5;
Hue.Value = 10;
//
// ExposureFocusPanel
//
ExposureFocusPanel.ColumnCount = 2;
PropertyPanel.SetColumnSpan(ExposureFocusPanel, 2);
ExposureFocusPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 50F));
ExposureFocusPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 50F));
ExposureFocusPanel.Controls.Add(Focus, 1, 1);
ExposureFocusPanel.Controls.Add(FocusLabel, 0, 1);
ExposureFocusPanel.Controls.Add(ExposureLabel, 0, 0);
ExposureFocusPanel.Controls.Add(Exposure, 1, 0);
ExposureFocusPanel.Dock = DockStyle.Fill;
ExposureFocusPanel.Location = new Point(249, 3);
ExposureFocusPanel.Name = "ExposureFocusPanel";
ExposureFocusPanel.RowCount = 2;
ExposureFocusPanel.RowStyles.Add(new RowStyle(SizeType.Percent, 50F));
ExposureFocusPanel.RowStyles.Add(new RowStyle(SizeType.Percent, 50F));
ExposureFocusPanel.Size = new Size(242, 139);
ExposureFocusPanel.TabIndex = 2;
//
// Focus
//
Focus.Dock = DockStyle.Fill;
Focus.Location = new Point(124, 72);
Focus.Maximum = 255;
Focus.Minimum = -1;
Focus.Name = "Focus";
Focus.Size = new Size(115, 64);
Focus.TabIndex = 4;
Focus.TickFrequency = 5;
Focus.Value = 1;
//
// FocusLabel
//
FocusLabel.AutoSize = true;
FocusLabel.BorderStyle = BorderStyle.FixedSingle;
FocusLabel.Dock = DockStyle.Fill;
FocusLabel.Location = new Point(3, 69);
FocusLabel.Name = "FocusLabel";
FocusLabel.Size = new Size(115, 70);
FocusLabel.TabIndex = 2;
FocusLabel.Text = "Focus";
FocusLabel.TextAlign = ContentAlignment.MiddleCenter;
//
// ExposureLabel
//
ExposureLabel.AutoSize = true;
ExposureLabel.BorderStyle = BorderStyle.FixedSingle;
ExposureLabel.Dock = DockStyle.Fill;
ExposureLabel.Location = new Point(3, 0);
ExposureLabel.Name = "ExposureLabel";
ExposureLabel.Size = new Size(115, 69);
ExposureLabel.TabIndex = 0;
ExposureLabel.Text = "Exposure";
ExposureLabel.TextAlign = ContentAlignment.MiddleCenter;
//
// Exposure
//
Exposure.Dock = DockStyle.Fill;
Exposure.Location = new Point(124, 3);
Exposure.Maximum = -1;
Exposure.Minimum = -13;
Exposure.Name = "Exposure";
Exposure.Size = new Size(115, 63);
Exposure.TabIndex = 3;
Exposure.TickFrequency = 5;
Exposure.Value = -1;
//
// BrightnessContrastPanel
//
BrightnessContrastPanel.ColumnCount = 2;
PropertyPanel.SetColumnSpan(BrightnessContrastPanel, 2);
BrightnessContrastPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 50F));
BrightnessContrastPanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 50F));
BrightnessContrastPanel.Controls.Add(Contrast, 1, 1);
BrightnessContrastPanel.Controls.Add(ContrastLabel, 0, 1);
BrightnessContrastPanel.Controls.Add(BrightnessLabel, 0, 0);
BrightnessContrastPanel.Controls.Add(Brightness, 1, 0);
BrightnessContrastPanel.Dock = DockStyle.Fill;
BrightnessContrastPanel.Location = new Point(3, 148);
BrightnessContrastPanel.Name = "BrightnessContrastPanel";
BrightnessContrastPanel.RowCount = 2;
BrightnessContrastPanel.RowStyles.Add(new RowStyle(SizeType.Percent, 50F));
BrightnessContrastPanel.RowStyles.Add(new RowStyle(SizeType.Percent, 50F));
BrightnessContrastPanel.Size = new Size(240, 139);
BrightnessContrastPanel.TabIndex = 1;
//
// Contrast
//
Contrast.Dock = DockStyle.Fill;
Contrast.Location = new Point(123, 72);
Contrast.Maximum = 100;
Contrast.Minimum = 1;
Contrast.Name = "Contrast";
Contrast.Size = new Size(114, 64);
Contrast.TabIndex = 4;
Contrast.TickFrequency = 5;
Contrast.Value = 10;
//
// ContrastLabel
//
ContrastLabel.AutoSize = true;
ContrastLabel.BorderStyle = BorderStyle.FixedSingle;
ContrastLabel.Dock = DockStyle.Fill;
ContrastLabel.Location = new Point(3, 69);
ContrastLabel.Name = "ContrastLabel";
ContrastLabel.Size = new Size(114, 70);
ContrastLabel.TabIndex = 2;
ContrastLabel.Text = "Contrast";
ContrastLabel.TextAlign = ContentAlignment.MiddleCenter;
//
// BrightnessLabel
//
BrightnessLabel.AutoSize = true;
BrightnessLabel.BorderStyle = BorderStyle.FixedSingle;
BrightnessLabel.Dock = DockStyle.Fill;
BrightnessLabel.Location = new Point(3, 0);
BrightnessLabel.Name = "BrightnessLabel";
BrightnessLabel.Size = new Size(114, 69);
BrightnessLabel.TabIndex = 0;
BrightnessLabel.Text = "Brightness";
BrightnessLabel.TextAlign = ContentAlignment.MiddleCenter;
//
// Brightness
//
Brightness.Dock = DockStyle.Fill;
Brightness.Location = new Point(123, 3);
Brightness.Maximum = 100;
Brightness.Minimum = 1;
Brightness.Name = "Brightness";
Brightness.Size = new Size(114, 63);
Brightness.TabIndex = 3;
Brightness.TickFrequency = 5;
Brightness.Value = 10;
//
// FrameSizePanel
//
FrameSizePanel.ColumnCount = 2;
PropertyPanel.SetColumnSpan(FrameSizePanel, 2);
FrameSizePanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 50F));
FrameSizePanel.ColumnStyles.Add(new ColumnStyle(SizeType.Percent, 50F));
FrameSizePanel.Controls.Add(FrameHeightLabel, 0, 1);
FrameSizePanel.Controls.Add(FrameHeight, 1, 1);
FrameSizePanel.Controls.Add(FrameWidthLabel, 0, 0);
FrameSizePanel.Controls.Add(FrameWidth, 1, 0);
FrameSizePanel.Dock = DockStyle.Fill;
FrameSizePanel.Location = new Point(3, 3);
FrameSizePanel.Name = "FrameSizePanel";
FrameSizePanel.RowCount = 2;
FrameSizePanel.RowStyles.Add(new RowStyle(SizeType.Percent, 50F));
FrameSizePanel.RowStyles.Add(new RowStyle(SizeType.Percent, 50F));
FrameSizePanel.Size = new Size(240, 139);
FrameSizePanel.TabIndex = 0;
//
// FrameHeightLabel
//
FrameHeightLabel.AutoSize = true;
FrameHeightLabel.BorderStyle = BorderStyle.FixedSingle;
FrameHeightLabel.Dock = DockStyle.Fill;
FrameHeightLabel.Location = new Point(3, 69);
FrameHeightLabel.Name = "FrameHeightLabel";
FrameHeightLabel.Size = new Size(114, 70);
FrameHeightLabel.TabIndex = 2;
FrameHeightLabel.Text = "Frame Height";
FrameHeightLabel.TextAlign = ContentAlignment.MiddleCenter;
//
// FrameHeight
//
FrameHeight.Dock = DockStyle.Fill;
FrameHeight.Location = new Point(123, 72);
FrameHeight.Maximum = new decimal(new int[] { 10000, 0, 0, 0 });
FrameHeight.Minimum = new decimal(new int[] { 1, 0, 0, 0 });
FrameHeight.Name = "FrameHeight";
FrameHeight.Size = new Size(114, 23);
FrameHeight.TabIndex = 3;
FrameHeight.Value = new decimal(new int[] { 768, 0, 0, 0 });
//
// FrameWidthLabel
//
FrameWidthLabel.AutoSize = true;
FrameWidthLabel.BorderStyle = BorderStyle.FixedSingle;
FrameWidthLabel.Dock = DockStyle.Fill;
FrameWidthLabel.Location = new Point(3, 0);
FrameWidthLabel.Name = "FrameWidthLabel";
FrameWidthLabel.Size = new Size(114, 69);
FrameWidthLabel.TabIndex = 0;
FrameWidthLabel.Text = "Frame Width";
FrameWidthLabel.TextAlign = ContentAlignment.MiddleCenter;
//
// FrameWidth
//
FrameWidth.Dock = DockStyle.Fill;
FrameWidth.Location = new Point(123, 3);
FrameWidth.Maximum = new decimal(new int[] { 10000, 0, 0, 0 });
FrameWidth.Minimum = new decimal(new int[] { 1, 0, 0, 0 });
FrameWidth.Name = "FrameWidth";
FrameWidth.Size = new Size(114, 23);
FrameWidth.TabIndex = 1;
FrameWidth.Value = new decimal(new int[] { 1024, 0, 0, 0 });
//
// Form1
//
AutoScaleDimensions = new SizeF(96F, 96F);
AutoScaleMode = AutoScaleMode.Dpi;
ClientSize = new Size(624, 441);
Controls.Add(ControlPanel);
Name = "Form1";
Text = "Form1";
ControlPanel.ResumeLayout(false);
CamListBox.ResumeLayout(false);
WebcamStartStopPanel.ResumeLayout(false);
PropertyPanel.ResumeLayout(false);
SharpnessPanel.ResumeLayout(false);
SharpnessPanel.PerformLayout();
((System.ComponentModel.ISupportInitialize)Sharpness).EndInit();
GainGammaPanel.ResumeLayout(false);
GainGammaPanel.PerformLayout();
((System.ComponentModel.ISupportInitialize)Gamma).EndInit();
((System.ComponentModel.ISupportInitialize)Gain).EndInit();
HueSaturationPanel.ResumeLayout(false);
HueSaturationPanel.PerformLayout();
((System.ComponentModel.ISupportInitialize)Saturation).EndInit();
((System.ComponentModel.ISupportInitialize)Hue).EndInit();
ExposureFocusPanel.ResumeLayout(false);
ExposureFocusPanel.PerformLayout();
((System.ComponentModel.ISupportInitialize)Focus).EndInit();
((System.ComponentModel.ISupportInitialize)Exposure).EndInit();
BrightnessContrastPanel.ResumeLayout(false);
BrightnessContrastPanel.PerformLayout();
((System.ComponentModel.ISupportInitialize)Contrast).EndInit();
((System.ComponentModel.ISupportInitialize)Brightness).EndInit();
FrameSizePanel.ResumeLayout(false);
FrameSizePanel.PerformLayout();
((System.ComponentModel.ISupportInitialize)FrameHeight).EndInit();
((System.ComponentModel.ISupportInitialize)FrameWidth).EndInit();
ResumeLayout(false);
}
#endregion
private System.Windows.Forms.TableLayoutPanel ControlPanel;
private System.Windows.Forms.GroupBox CamListBox;
private System.Windows.Forms.ListBox WebcamList;
private System.Windows.Forms.TableLayoutPanel WebcamStartStopPanel;
private System.Windows.Forms.Button StopButton;
private System.Windows.Forms.Button StartButton;
private System.Windows.Forms.TableLayoutPanel PropertyPanel;
private System.Windows.Forms.TableLayoutPanel FrameSizePanel;
private System.Windows.Forms.Label FrameHeightLabel;
private System.Windows.Forms.NumericUpDown FrameHeight;
private System.Windows.Forms.Label FrameWidthLabel;
private System.Windows.Forms.NumericUpDown FrameWidth;
private System.Windows.Forms.TableLayoutPanel BrightnessContrastPanel;
private System.Windows.Forms.TrackBar Contrast;
private System.Windows.Forms.Label ContrastLabel;
private System.Windows.Forms.Label BrightnessLabel;
private System.Windows.Forms.TrackBar Brightness;
private System.Windows.Forms.TableLayoutPanel ExposureFocusPanel;
private System.Windows.Forms.TrackBar Focus;
private System.Windows.Forms.Label FocusLabel;
private System.Windows.Forms.Label ExposureLabel;
private System.Windows.Forms.TrackBar Exposure;
private System.Windows.Forms.TableLayoutPanel HueSaturationPanel;
private System.Windows.Forms.TrackBar Saturation;
private System.Windows.Forms.Label SaturationLabel;
private System.Windows.Forms.Label HueLabel;
private System.Windows.Forms.TrackBar Hue;
private System.Windows.Forms.TableLayoutPanel GainGammaPanel;
private System.Windows.Forms.TrackBar Gamma;
private System.Windows.Forms.Label GammaLabel;
private System.Windows.Forms.Label GainLabel;
private System.Windows.Forms.TrackBar Gain;
private System.Windows.Forms.TableLayoutPanel SharpnessPanel;
private System.Windows.Forms.Label SharpnessLabel;
private System.Windows.Forms.TrackBar Sharpness;
}3. 참조 자료
- Exposure (photography) - Wiki
- Focus (optics) - Wiki
- Autofocus - Wiki
- Digital Image Processing: Point Operations to Adjust Brightness and Contrast - All about circuits
- HSL and HSV - Wiki
- What's the difference between "Offset | Gamma | Gain" - Adobe community
- Sharpness: What is it and How it is Measured - imatest
