Database schema query

Peponi │ 1/23/2025 │ 13m

C#
NotionDatabaseHttpGetPatchJson

1. Introduction

Notion은 페이지, 데이터베이스 등에 대해 REST API를 지원한다.

여기서는 다음 항목을 다룬다.

  1. Retrieve a database
  2. Update a database

2. Database to perform

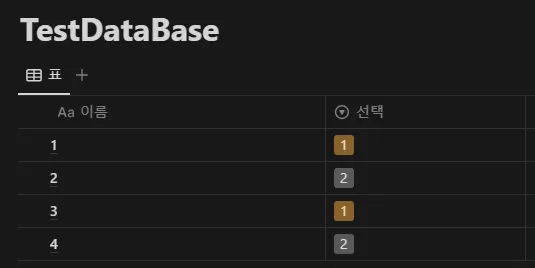

DB 조회 및 필터 방법에 앞서, 테스트를 수행할 DB의 형태는 아래와 같다.

databaseImage

선택으로 명명되어 있는 select 항목의 옵션은 아래와 같다.

selectImage

DB 작업 수행 간 JSON 형식의 Database object를 HTTP body에 실어 노션과 주고받게 된다. Reference 페이지를 참조하여 구현한 JSON object의 형태는 아래와 같다.

DatabaseInformation (펼치기 / 접기)
using System.Text.Json.Serialization;

namespace NotionAPI.Objects;

// https://developers.notion.com/reference/database 에 따라 작성
public class DatabaseInformation
{
    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public string? @object { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public string? id { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingDefault)]
    public DateTime created_time { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public User? created_by { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingDefault)]
    public DateTime last_edited_time { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public User? last_edited_by { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public List<RichText>? title { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public List<RichText>? description { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public object? icon { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public object? cover { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public Dictionary<string, DatabaseProperty>? properties { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public Parent? parent { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public string? url { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingDefault)]
    public bool archived { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingDefault)]
    public bool is_inline { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public string? public_url { get; set; }
}
DatabaseProperty (펼치기 / 접기)
using System.Text.Json.Serialization;

namespace NotionAPI.Objects;

// https://developers.notion.com/reference/property-object 에 따라 작성
[JsonConverter(typeof(DatabasePropertyConverter))]
public class DatabaseProperty
{
    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public string? id { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public string? name { get; set; }
}

public class DatabaseSelect : DatabaseProperty
{
    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public SelectOptions? select { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public string? equals { get; set; }
}

public class DatabaseTitle : DatabaseProperty
{
    public RichText? title { get; set; }
}

public class DatabasePropertyConverter : JsonConverter<DatabaseProperty>
{
    public override DatabaseProperty? Read(ref Utf8JsonReader reader, Type typeToConvert, JsonSerializerOptions options)
    {
        var jsonDoc = JsonDocument.ParseValue(ref reader);
        if (jsonDoc.RootElement.TryGetProperty("type", out var typeName))
        {
            return typeName.GetString() switch
            {
                "select" => JsonSerializer.Deserialize<DatabaseSelect>(jsonDoc),
                "title" => JsonSerializer.Deserialize<DatabaseTitle>(jsonDoc),
                _ => null
            };
        }

        return null;
    }

    public override void Write(Utf8JsonWriter writer, DatabaseProperty value, JsonSerializerOptions options)
    {
        switch (value)
        {
            case DatabaseSelect select:
                JsonSerializer.Serialize(writer, select);
                break;

            case DatabaseTitle title:
                JsonSerializer.Serialize(writer, title);
                break;
        }
    }
}
User (펼치기 / 접기)
using System.Text.Json.Serialization;

namespace NotionAPI.Objects;

// https://developers.notion.com/reference/user 에 따라 작성
[JsonPolymorphic(TypeDiscriminatorPropertyName = "type")]
[JsonDerivedType(typeof(People), typeDiscriminator: "person")]
[JsonDerivedType(typeof(Bots), typeDiscriminator: "bot")]
public class User
{
    public string? @object { get; set; }
    public string? id { get; set; }
    public string? name { get; set; }
    public string? avatar_url { get; set; }
}

public sealed class People : User
{
    public object? person { get; set; }
}

public sealed class Bots : User
{
    public object? bot { get; set; }
}
RichText (펼치기 / 접기)
using System.Text.Json.Serialization;

namespace NotionAPI.Objects;

// https://developers.notion.com/reference/rich-text 에 따라 작성
[JsonPolymorphic(TypeDiscriminatorPropertyName = "type")]
[JsonDerivedType(typeof(RichTextWithText), typeDiscriminator: "text")]
[JsonDerivedType(typeof(RichTextWithMention), typeDiscriminator: "mention")]
[JsonDerivedType(typeof(RichTextWithEquation), typeDiscriminator: "equation")]
public class RichText
{
    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public Annotations? annotations { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public string? plain_text { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public string? href { get; set; }
}

public sealed class RichTextWithText : RichText
{
    public Text? text { get; set; }
}

public sealed class RichTextWithMention : RichText
{
    public object? mention { get; set; }
}

public sealed class RichTextWithEquation : RichText
{
    public object? equation { get; set; }
}

public class Annotations
{
    public bool bold { get; set; }
    public bool italic { get; set; }
    public bool strikethrough { get; set; }
    public bool underline { get; set; }
    public bool code { get; set; }
    public string? color { get; set; } = "default";
}

public class Text
{
    public string? content { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public Link? link { get; set; }
}

public class Link
{
    public string? url { get; set; }
}
Parent (펼치기 / 접기)
using System.Text.Json.Serialization;

namespace NotionAPI.Objects;

// https://developers.notion.com/reference/parent-object 에 따라 작성
[JsonPolymorphic(TypeDiscriminatorPropertyName = "type")]
[JsonDerivedType(typeof(DatabaseParent), typeDiscriminator: "database_id")]
[JsonDerivedType(typeof(PageParent), typeDiscriminator: "page_id")]
[JsonDerivedType(typeof(WorkspaceParent), typeDiscriminator: "workspace")]
[JsonDerivedType(typeof(BlockParent), typeDiscriminator: "block_id")]
public class Parent
{
}

public sealed class DatabaseParent : Parent
{
    public string? database_id { get; set; }
}

public sealed class PageParent : Parent
{
    public string? page_id { get; set; }
}

public sealed class WorkspaceParent : Parent
{
    public bool workspace { get; set; } = true;
}

public sealed class BlockParent : Parent
{
    public string? block_id { get; set; }
}
Select, SelectOptions (펼치기 / 접기)
using System.Text.Json.Serialization;

namespace NotionAPI.Objects;

// https://developers.notion.com/reference/property-object#select 에 따라 작성
public class Select
{
    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public string? id { get; set; }

    public string? name { get; set; }

    [JsonIgnore(Condition = JsonIgnoreCondition.WhenWritingNull)]
    public string? color { get; set; }
}

public class SelectOptions
{
    public List<Select>? options { get; set; }
}

3. Retrieve a database

Request 및 수신 데이터에 대한 deserialize 방법은 아래와 같다.

using NotionAPI.Objects;
using System.Text.Json;

private static void Main(string[] args)
{
    string baseUri = "https://api.notion.com/v1/databases";
    string databaseKey = "데이터베이스 키";
    string APIKey = "API 키";

    Retrieve(baseUri, databaseKey, APIKey);
}

private static bool Retrieve(string baseUri, string databaseKey, string APIKey)
{
    HttpClient client = new();

    // https://developers.notion.com/reference/retrieve-a-database 문서 내용에 따라 Get으로 request 작성
    var request = new HttpRequestMessage(HttpMethod.Get, $"{baseUri}/{databaseKey}");
    request.Headers.Add("Authorization", $"Bearer {APIKey}");
    request.Headers.Add("Notion-Version", "2022-06-28");

    var response = client.Send(request);

    // StatusCode를 포함한 Header 출력
    Console.WriteLine(response);

    // JSON 형식의 Body 출력
    var content = new StreamReader(response.Content.ReadAsStream()).ReadToEnd();
    Console.WriteLine(content);

    // Parsing
    var parsed = JsonSerializer.Deserialize<DatabaseInformation>(content);

    return response.StatusCode == System.Net.HttpStatusCode.OK;
}

수신되는 데이터는 아래와 같다.

Header (펼치기 / 접기)
StatusCode: 200, ReasonPhrase: 'OK', Version: 1.1, Content: System.Net.Http.HttpConnectionResponseContent, Headers:
{
    Date: Mon, 08 Apr 2024 21:44:07 GMT
    Transfer-Encoding: chunked
    Connection: keep-alive
    X-Powered-By: Express
    x-notion-request-id: 69ac934d-19e3-4f61-a203-97d3d7163c25
    ETag: W/"43f-jWb6i+31Pzu1P41blZV4YpBeLUU"
    Vary: Accept-Encoding
    CF-Cache-Status: DYNAMIC
    Set-Cookie: __cf_bm=VzFf9FGzlRxJAsPL30Fo1lXbWNsSzpdb6MDCXadZj4g-1712612647-1.0.1.1-MX4uj538aCBZoXKkrEWDNmUHE4DKgt_kV2NJiP0P8eThI8jirGHBnNRxI5fTmYSqqY0C7pe3rbGafsEUVINNSg; path=/; expires=Mon, 08-Apr-24 22:14:07 GMT; domain=.notion.com; HttpOnly; Secure
    Server: cloudflare
    CF-RAY: 87156fd3ab33315e-ICN
    Content-Type: application/json; charset=utf-8
}
Body (펼치기 / 접기)
{
  "object": "database",
  "id": "DB id",
  "cover": null,
  "icon": null,
  "created_time": "2024-04-03T22:03:00.000Z",
  "created_by": {
    "object": "user",
    "id": "유저 id"
  },
  "last_edited_by": {
    "object": "user",
    "id": "유저 id"
  },
  "last_edited_time": "2024-04-05T00:52:00.000Z",
  "title": [
    {
      "type": "text",
      "text": {
        "content": "TestDataBase",
        "link": null
      },
      "annotations": {
        "bold": false,
        "italic": false,
        "strikethrough": false,
        "underline": false,
        "code": false,
        "color": "default"
      },
      "plain_text": "TestDataBase",
      "href": null
    }
  ],
  "description": [],
  "is_inline": false,
  "properties": {
    "선택": {
      "id": "sKnP",
      "name": "선택",
      "type": "select",
      "select": {
        "options": [
          {
            "id": "vNQJ",
            "name": "2",
            "color": "gray",
            "description": null
          },
          {
            "id": "nvSy",
            "name": "1",
            "color": "yellow",
            "description": null
          }
        ]
      }
    },
    "이름": {
      "id": "title",
      "name": "이름",
      "type": "title",
      "title": {}
    }
  },
  "parent": {
    "type": "workspace",
    "workspace": true
  },
  "url": "https://www.notion.so/데이터베이스 키",
  "public_url": null,
  "archived": false,
  "in_trash": false,
  "request_id": "69ac934d-19e3-4f61-a203-97d3d7163c25"
}

4. Update a database

아래는 DB의 select 항목에 3 옵션을 추가하는 간단한 예시이다. 정상적으로 옵션이 추가되는 경우 HttpStatusCode.OK를 반환하며 변경된 데이터베이스 정보를 body에 실어 보내준다.

using NotionAPI.Objects;
using System.Net.Http.Json;
using System.Text.Json;

private static void Main(string[] args)
{
    string baseUri = "https://api.notion.com/v1/databases";
    string databaseKey = "데이터베이스 키";
    string APIKey = "API 키";

    Update(baseUri, databaseKey, APIKey);
}

private static bool Update(string baseUri, string databaseKey, string APIKey)
{
    HttpClient client = new();

    // https://developers.notion.com/reference/update-a-database 문서 내용에 따라 Patch로 request 작성
    var patchRequest = new HttpRequestMessage(HttpMethod.Patch, $"{baseUri}/{databaseKey}");
    patchRequest.Headers.Add("Authorization", $"Bearer {APIKey}");
    patchRequest.Headers.Add("Notion-Version", "2022-06-28");

    // select에 '3' 옵션 추가
    var information = new DatabaseInformation();
    var property = new Dictionary<string, DatabaseProperty>();
    var select = new DatabaseSelect();
    property.Add("선택", select);
    select.select = new()
    {
        options = new()
    };

    // 기존 옵션 정보 추가 (덮어쓰기 형태로 동작)
    for (int index = 1; index < 3; index++)
    {
        select.select.options.Add(new() { name = index.ToString() });
    }
    select.select.options.Add(new() { name = "3", color = "blue" });

    information.properties = property;
    patchRequest.Content = JsonContent.Create(information);

    var response = client.Send(patchRequest);

    // StatusCode를 포함한 Header 출력
    Console.WriteLine(response);

    // JSON 형식의 Body 출력
    var content = new StreamReader(response.Content.ReadAsStream()).ReadToEnd();
    Console.WriteLine(content);

    return response.StatusCode == System.Net.HttpStatusCode.OK;
}

옵션이 추가되면 UI에 자동 반영되며, 수신되는 데이터는 아래와 같다.

updateAfter

Header (펼치기 / 접기)
StatusCode: 200, ReasonPhrase: 'OK', Version: 1.1, Content: System.Net.Http.HttpConnectionResponseContent, Headers:
{
    Date: Mon, 08 Apr 2024 22:39:54 GMT
    Transfer-Encoding: chunked
    Connection: keep-alive
    X-Powered-By: Express
    x-notion-request-id: 9ada832f-ef24-4d78-98fe-354c052533b0
    ETag: W/"49a-NktLub6K767pqgH+bW/fNXXy148"
    Vary: Accept-Encoding
    CF-Cache-Status: DYNAMIC
    Set-Cookie: __cf_bm=BrD6Jt77uM8XW3CLTFV.R4gC1vVwFxYxcaNmOztMJvg-1712615994-1.0.1.1-rllYRf.IImzPK9cyfzMB1BC8eUaOgAflI1gepQ0ik.3RQAasr.B.VBnqGDBJbkPT5AtbAcFAiy23dWe0Wr2pQw; path=/; expires=Mon, 08-Apr-24 23:09:54 GMT; domain=.notion.com; HttpOnly; Secure
    Server: cloudflare
    CF-RAY: 8715c1883c7a311b-ICN
    Content-Type: application/json; charset=utf-8
}
Body (펼치기 / 접기)
{
  "object": "database",
  "id": "DB id",
  "cover": null,
  "icon": null,
  "created_time": "2024-04-03T22:03:00.000Z",
  "created_by": {
    "object": "user",
    "id": "유저 id"
  },
  "last_edited_by": {
    "object": "user",
    "id": "유저 id"
  },
  "last_edited_time": "2024-04-08T22:39:00.000Z",
  "title": [
    {
      "type": "text",
      "text": {
        "content": "TestDataBase",
        "link": null
      },
      "annotations": {
        "bold": false,
        "italic": false,
        "strikethrough": false,
        "underline": false,
        "code": false,
        "color": "default"
      },
      "plain_text": "TestDataBase",
      "href": null
    }
  ],
  "description": [],
  "is_inline": false,
  "properties": {
    "선택": {
      "id": "sKnP",
      "name": "선택",
      "type": "select",
      "select": {
        "options": [
          {
            "id": "@:oT",
            "name": "1",
            "color": "yellow",
            "description": null
          },
          {
            "id": "CsLi",
            "name": "2",
            "color": "gray",
            "description": null
          },
          {
            "id": "9a1c5714-22f3-47dd-93af-633343cd2bb9",
            "name": "3",
            "color": "blue",
            "description": null
          }
        ]
      }
    },
    "이름": {
      "id": "title",
      "name": "이름",
      "type": "title",
      "title": {}
    }
  },
  "parent": {
    "type": "workspace",
    "workspace": true
  },
  "url": "https://www.notion.so/데이터베이스 키",
  "public_url": null,
  "archived": false,
  "in_trash": false,
  "request_id": "9ada832f-ef24-4d78-98fe-354c052533b0"
}

4.1. Retrieve and update

만약 옵션을 알지 못하는 경우 DB 조회 후 옵션을 추가할 수 있다.

using NotionAPI.Objects;
using System.Net.Http.Json;
using System.Text.Json;

private static void Main(string[] args)
{
    string baseUri = "https://api.notion.com/v1/databases";
    string databaseKey = "데이터베이스 키";
    string APIKey = "API 키";

    RetrieveAndUpdate(baseUri, databaseKey, APIKey);
}

private static bool RetrieveAndUpdate(string baseUri, string databaseKey, string APIKey)
{
    // 기존 select 정보를 얻기 위해 데이터베이스 정보를 얻어옴
    HttpClient client = new();

    // https://developers.notion.com/reference/retrieve-a-database 문서 내용에 따라 Get으로 request 작성
    var getRequest = new HttpRequestMessage(HttpMethod.Get, $"{baseUri}/{databaseKey}");
    getRequest.Headers.Add("Authorization", $"Bearer {APIKey}");
    getRequest.Headers.Add("Notion-Version", "2022-06-28");

    var response = client.Send(getRequest);
    var content = new StreamReader(response.Content.ReadAsStream()).ReadToEnd();

    // https://developers.notion.com/reference/update-a-database 문서 내용에 따라 Patch로 request 작성
    var patchRequest = new HttpRequestMessage(HttpMethod.Patch, $"{baseUri}/{databaseKey}");
    patchRequest.Headers.Add("Authorization", $"Bearer {APIKey}");
    patchRequest.Headers.Add("Notion-Version", "2022-06-28");

    // Parsing 후 select에 '3' 옵션 추가
    var parsed = JsonSerializer.Deserialize<DatabaseInformation>(content);
    if (parsed is not null)
    {
        var information = new DatabaseInformation();
        var property = new Dictionary<string, DatabaseProperty>();
        var select = new DatabaseSelect();
        property.Add("선택", select);
        select.select = new()
        {
            options = new()
        };

        foreach (var option in ((DatabaseSelect)parsed.properties!["선택"]!).select!.options!)
        {
            select.select.options.Add(new Select() { name = option.name });
        }
        select.select.options.Add(new() { name = "3", color = "blue" });

        information.properties = property;
        patchRequest.Content = JsonContent.Create(information);
    }

    response = client.Send(patchRequest);

    // StatusCode를 포함한 Header 출력
    Console.WriteLine(response);

    // JSON 형식의 Body 출력
    content = new StreamReader(response.Content.ReadAsStream()).ReadToEnd();
    Console.WriteLine(content);

    return response.StatusCode == System.Net.HttpStatusCode.OK;
}

옵션이 추가되면 UI에 자동 반영되며, 수신되는 데이터는 아래와 같다.

updateAfter1

Header (펼치기 / 접기)
StatusCode: 200, ReasonPhrase: 'OK', Version: 1.1, Content: System.Net.Http.HttpConnectionResponseContent, Headers:
{
    Date: Mon, 08 Apr 2024 22:45:15 GMT
    Transfer-Encoding: chunked
    Connection: keep-alive
    X-Powered-By: Express
    x-notion-request-id: 82d93896-78af-4bcb-b842-aa620174a0c5
    ETag: W/"49a-VeWAFQBnQeq9gUUUdT888JwL8RA"
    Vary: Accept-Encoding
    CF-Cache-Status: DYNAMIC
    Server: cloudflare
    CF-RAY: 8715c947ead48b67-ICN
    Content-Type: application/json; charset=utf-8
}
Body (펼치기 / 접기)
{
  "object": "database",
  "id": "DB id",
  "cover": null,
  "icon": null,
  "created_time": "2024-04-03T22:03:00.000Z",
  "created_by": {
    "object": "user",
    "id": "유저 id"
  },
  "last_edited_by": {
    "object": "user",
    "id": "유저 id"
  },
  "last_edited_time": "2024-04-08T22:45:00.000Z",
  "title": [
    {
      "type": "text",
      "text": {
        "content": "TestDataBase",
        "link": null
      },
      "annotations": {
        "bold": false,
        "italic": false,
        "strikethrough": false,
        "underline": false,
        "code": false,
        "color": "default"
      },
      "plain_text": "TestDataBase",
      "href": null
    }
  ],
  "description": [],
  "is_inline": false,
  "properties": {
    "선택": {
      "id": "sKnP",
      "name": "선택",
      "type": "select",
      "select": {
        "options": [
          {
            "id": "@:oT",
            "name": "1",
            "color": "yellow",
            "description": null
          },
          {
            "id": "CsLi",
            "name": "2",
            "color": "gray",
            "description": null
          },
          {
            "id": "92324ab1-fa22-4b2c-b876-6e30116fe80b",
            "name": "3",
            "color": "blue",
            "description": null
          }
        ]
      }
    },
    "이름": {
      "id": "title",
      "name": "이름",
      "type": "title",
      "title": {}
    }
  },
  "parent": {
    "type": "workspace",
    "workspace": true
  },
  "url": "https://www.notion.so/데이터베이스 키",
  "public_url": null,
  "archived": false,
  "in_trash": false,
  "request_id": "82d93896-78af-4bcb-b842-aa620174a0c5"
}

5. 참조 자료
